Application Context & Operational Challenges

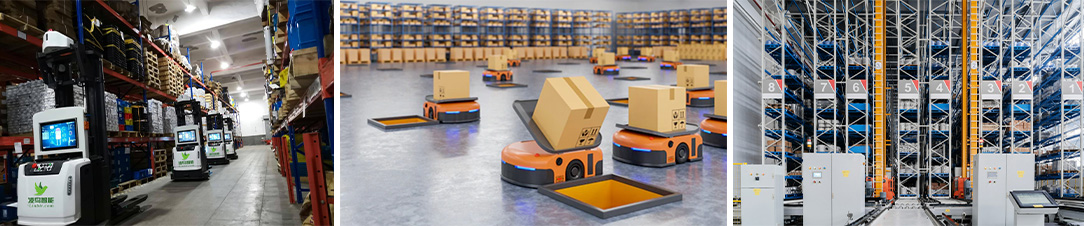

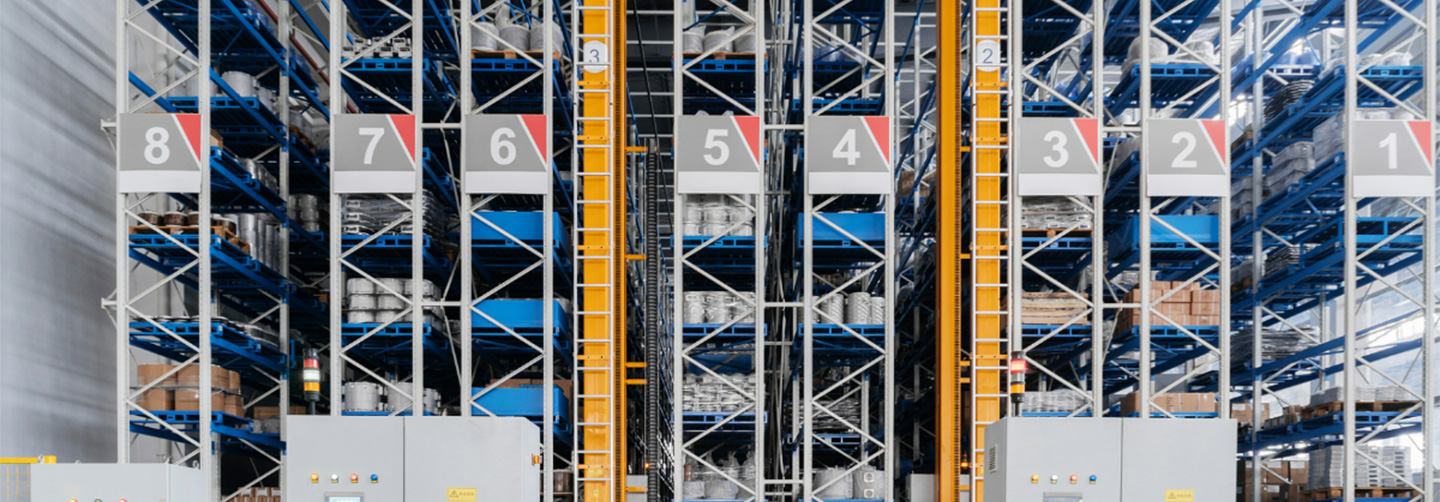

In modern automated storage and retrieval systems (AS/RS), traditional chain-driven mechanisms struggle with three critical limitations:
Limited vertical acceleration (≤1.5 m/s²) due to inertial constraints
Frequent maintenance requirements (every 400 operational hours)
Energy inefficiency (35-40% power loss in transmission systems)
Next-Gen Wire Rope Solution
The 6×36WS+IWR-Dyneema® hybrid wire rope redefines material handling through multi-layer innovation:
Structural Architecture
Core Layer: 2.5mm diameter Dyneema® SK78 fibers (1700 MPa tensile strength)
Intermediate Layer: 36-wire compacted strands (0.4mm wire diameter)
Outer Layer: 6-wire anti-rotation helical wrap (316 stainless steel)
Smart Monitoring System Integration
Embedded fiber Bragg grating (FBG) sensors at 50cm intervals:
Strain resolution: ±1 με (microstrain)
Temperature compensation: ±0.1°C accuracy
Predictive analytics module:
Machine learning model trained on 2.4 million load cycles
92% accuracy in predicting strand deformation 72 hours pre-failure
Performance Validation
Dynamic Load Testing (ISO 4308):
Parameter Result Industry Benchmark
Maximum acceleration 4.2 m/s² 1.8 m/s²
Energy recovery 28% (regenerative braking) 0%
Noise emission 42 dB(A) @ 3m 68 dB(A)
Durability Metrics:
Mean time between failures (MTBF): 27,500 hours
Abrasion resistance: 0.02mm diameter loss/1,000 cycles
Corrosion resistance: Passed 1,000-hour salt spray test
Digital Twin Integration
Real-time synchronization with warehouse management systems:
Load distribution optimization algorithm reduces empty travel by 37%
Anti-sway control system limits payload oscillation to <5mm
Industrial Impact Metrics
Logistics Efficiency:
Storage density increased by 55% through high-speed vertical stacking
Order fulfillment time reduced from 22 to 8 minutes
Sustainability Gains:
62% reduction in energy consumption vs. chain systems
89% recyclability rate through modular disassembly
